ConceptDescriptions with AAS SAMM Extensions

Introduction

The Asset Administration Shell allows to define so-called "Extensions". Extensions are meant to realize schema extensions that are not (yet) part of the standardized schema. One such extension set may be defined to realize SAMM elements as AAS Concept Descriptions. They are the basis for a new data specification for semantics (restrictive access) parallel to IEC61360 data specification (Part 3a).

With this approach round-trip is supported.

AAS Metamodel Extensions.png

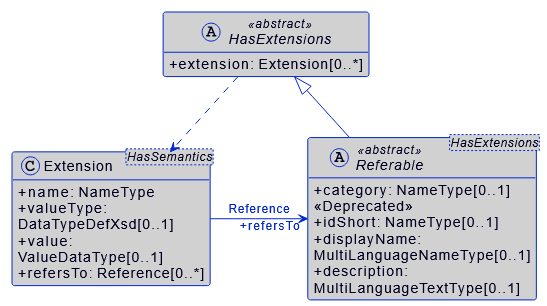

Figure 1. AAS Metamodel: HasExtensions

For every element in the SAMM Metamodel a corresponding extension is defined in AAS. The coloring and naming of the different types of concept descriptions in the AASX Package Explorer is aligend with the ESMF Aspect Model Editor. A complete example can be found in https://github.com/eclipse-aaspe/package-explorer/tree/main/src/AasxCore.Samm2_2_0/documentation/examples.

The mapping of the SAMM elements to the AAS SubmodelElements is identical to what is described in SAMM2SMT.

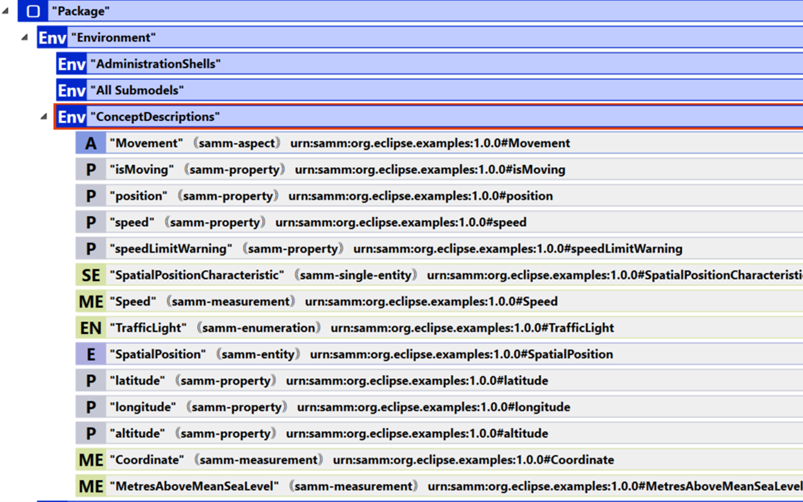

Code Example in AASX Package Explorer: SAMM Extensions
Figure 2. Code example in AASX Package Explorer: SAMM extensions

SAMM Extension

For every SAMM Metamodel element its unique identifier shall be used as semanticId of the Extension.

There are attributes available to all SAMM elements.

  • samm:preferredName

  • samm:description

  • samm:see

The value of the Extension is predefined and depends on this semanticId. For a samm:Property for example the value covers the unique identifier of the Characteristic as well as the preferredName of the samm:Property etc.

Code example: SAMM attributes preferredName, description and see
:isMoving a samm:Property ;
   samm:preferredName "is moving"@en ;
   samm:description "Flag indicating whether the asset is currently moving"@en ;
   samm:see <https://example.com/isMoving> ;
   samm:characteristic samm-c:Boolean .
Code example: SAMM attributes preferredName, description and see mapped to AAS Extension
<extension>
    <semanticId>
        <type>ExternalReference</type>
        <keys>
            <key>
                <type>GlobalReference</type>
                <value>urn:samm:org.eclipse.esmf.samm:meta-model:2.0.0#Property</value>
            </key>
        </keys>
    </semanticId>
    <name>samm-property</name>
    <valueType>xs:string</valueType>
    <value>{
  "Characteristic": {
    "Value": "urn:samm:org.eclipse.esmf.samm:characteristic:2.0.0#Boolean"
  },
  "PreferredName": [
    {
      "Language": "en",
      "Text": "is moving"
    }
  ],
  "See": [
    "https://example.com/isMoving"
  ]
  }</value>
</extension>
Code example: samm:Aspect
@prefix samm: <urn:samm:org.eclipse.esmf.samm:meta-model:2.0.0#> .
@prefix samm-c: <urn:samm:org.eclipse.esmf.samm:characteristic:2.0.0#> .
@prefix samm-e: <urn:samm:org.eclipse.esmf.samm:entity:2.0.0#> .
@prefix unit: <urn:samm:org.eclipse.esmf.samm:unit:2.0.0#> .
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .
@prefix : <urn:samm:org.eclipse.examples:1.0.0#> .

:Movement a samm:Aspect ;
   samm:preferredName "movement"@en ;
   samm:description "Aspect for movement information"@en ;
   samm:properties ( :isMoving :position :speed :speedLimitWarning ) ;
   samm:operations ( ) ;
   samm:events ( ) .
Code example: AAS SAMM Extension for a samm:Aspect
<extension>
    <semanticId>
        <type>ExternalReference</type>
        <keys>
            <key>
                <type>GlobalReference</type>
                <value>urn:samm:org.eclipse.esmf.samm:meta-model:2.0.0#Aspect</value>
            </key>
        </keys>
    </semanticId>
    <name>samm-aspect</name>
    <valueType>xs:string</valueType>
    <value>{
  "Namespaces": {
    "Items": [
      {
        "Prefix": "rdf:",
        "Uri": "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
      },
      {
        "Prefix": "rdfs:",
        "Uri": "http://www.w3.org/2000/01/rdf-schema#"
      },
      {
        "Prefix": "xsd:",
        "Uri": "http://www.w3.org/2001/XMLSchema#"
      },
      {
        "Prefix": "samm:",
        "Uri": "urn:samm:org.eclipse.esmf.samm:meta-model:2.0.0#"
      },
      {
        "Prefix": "samm-c:",
        "Uri": "urn:samm:org.eclipse.esmf.samm:characteristic:2.0.0#"
      },
      {
        "Prefix": "samm-e:",
        "Uri": "urn:samm:org.eclipse.esmf.samm:entity:2.0.0#"
      },
      {
        "Prefix": "unit:",
        "Uri": "urn:samm:org.eclipse.esmf.samm:unit:2.0.0#"
      },
      {
        "Prefix": ":",
        "Uri": "urn:samm:org.eclipse.examples:1.0.0#"
      }
    ]
  },
  "Comments": "",
  "Properties": [
    {
      "Optional": false,
      "Value": "urn:samm:org.eclipse.examples:1.0.0#isMoving"
    },
    {
      "Optional": false,
      "Value": "urn:samm:org.eclipse.examples:1.0.0#position"
    },
    {
      "Optional": false,
      "Value": "urn:samm:org.eclipse.examples:1.0.0#speed"
    }
  ],
  "Events": [],
  "Operations": [],
  "PreferredName": [
    {
      "Language": "en",
      "Text": "movement"
    }
  ]
 }</value>
</extension>
No. Obligation SAMM (Aspect Model) AAS (Submodel Template) Notes

S2E-0001

MUST

ConceptDescription/id = <element identifier, i.e. namespace and name of element>

Example: urn:samm:org.eclipse.examples:1.0.0#SpatialPosition

S2E-0002

MUST

Extension/semanticId of extensions of a ConceptDescription as GlobalReference with key value <identifier of metamodel element>

Example:

<semanticId>
    <type>ExternalReference</type>
    <keys>
        <key>
            <type>GlobalReference</type>
            <value>urn:samm:org.eclipse.esmf.samm:meta-model:2.0.0#Property</value>
        </key>
    </keys>
</semanticId>

S2E-0003

MUST

Extension/name

conformant to table below

Example: samm-property, samm-sorted-set

S2E-0004

MUST

Extension/valueType has value xs:string

S2E-0005

MUST

samm:preferredName

Attribute "PreferredName" within predefined JSON for Extension/value

Example:

"PreferredName": [
  {
    "Language": "en",
    "Text": "is moving"
  }
]

S2E-0006

MUST

samm:description

ConceptDescription/description

This is the only exception of a SAMM attribute not contained within predefined JSON for Extension/value

S2A-0007

MUST

samm:see

Attribute "See" within predefined JSON for Extension/value

Example:

"See": [
  "https://example.com/isMoving"
]

S2A-0008

MUST

Other SAMM attributes of SAMM elements

Attribute "<name of SAMM attribute starting with Capital letter"" within predefined JSON for Extension/value

Example:

"DataType"

"Characteristic"

"Unit"

S2A-0009

MUST

@prefix for namespaces

Attribute "Namespaces" within predefined JSON for Extension/value This attribute is part of the Extension representing the samm:Aspect

Example:

"Namespaces": {
  "Items": [
    {
      "Prefix": "rdf:",
      "Uri": "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
    }
  ]
}

S2A-0010

MUST

Comments within imported file at the beginning of the file, typically containing copyright information etc. starting with #

Attribute "Comments" within predefined JSON for Extension/value This attribute is part of the Extension representing the samm:Aspect

S2A-0011

MUST

References with namespace prefix

Always use complete identifier and no namespace prefix for values within predefined JSON for Extension/value

Examples:

"Characteristic": {
  "Value": "urn:samm:org.eclipse.esmf.samm:characteristic:2.0.0#Boolean"
}
"Properties": [
  {
    "Optional": false,
    "Value": "urn:samm:org.eclipse.examples:1.0.0#isMoving"
  }
]
"Unit": {
  "Value": "urn:samm:org.eclipse.esmf.samm:unit:2.0.0#kilometrePerHour"
}

These identifiers are also used for jumping to the different SAMM Extensions
SAMM Element Extension/name Notes

samm:<element name>

samm-<element name starting with small letter>

Example:

samm-property,

samm-aspect

samm-c:<element name>

samm-<element name starting with small letter, if CamelCase different parts are separated by "-">

Examples:

samm-sorted-set

samm-trait
